Descriptions
New style 90m lifting height 4.4m/min lift Speed 12v electric hoist
Product Description

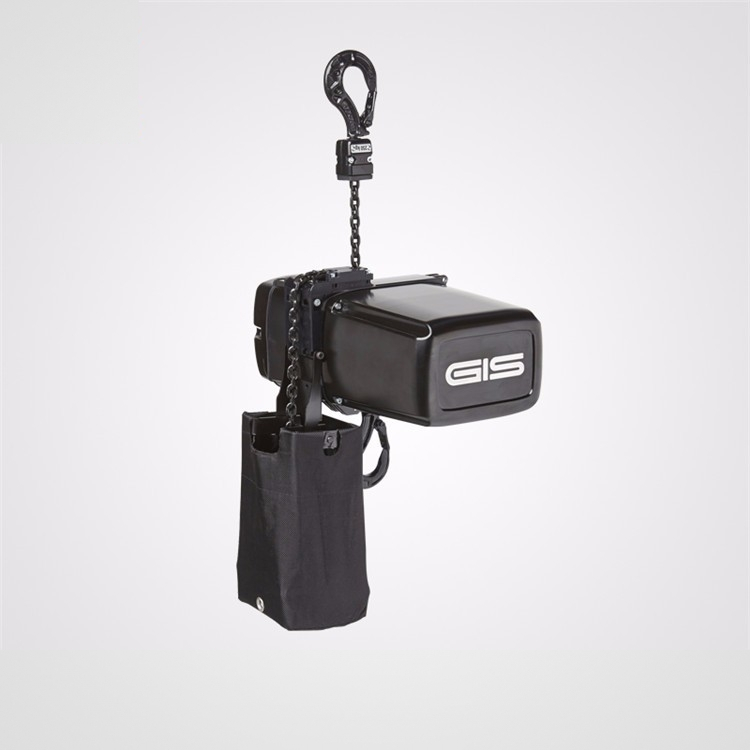

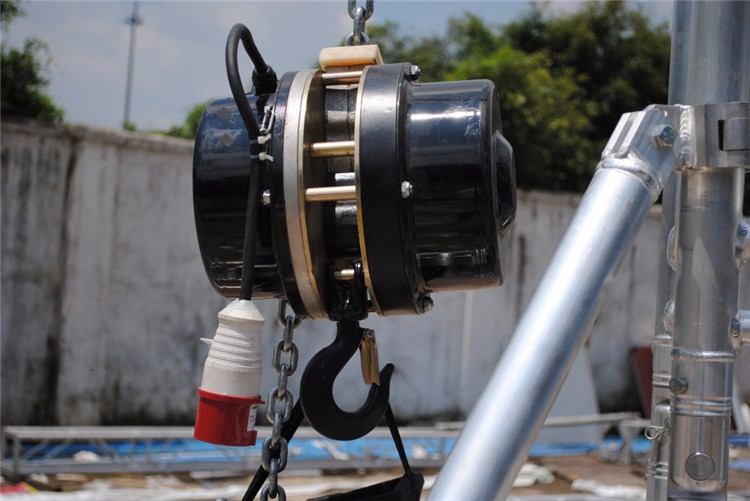

| ELECTRIC HOIST | ||||||
| Model | HHGA0.25 | HHGA0.5 | HHGA1 | HHGA1.6 | HHGA2 | HHGA3.2 |
Lifting capacity (t) | 0.25 | 0.5 | 1 | 1.6 | 2 | 3.2 |
Chain diameter (mm) | 6x18 | 6x18 | 6x18/8x24 | 10x30 | 10x30 | 10x30 |
| Lift height(m) | 3 | |||||
| Power(kw) | 0.5 | 0.5 | 0.5 | 1.1 | 1.5 | 1.1 |
| Lift speed(r/min) | 6.3 | 4 | 2 | 3.2 | 3.2 | 1.6 |
| Power supply | 3 phases,380v,50Hz/3 phases,220v,60Hz/3 phases, 440v,60Hz,/3 phases,380v,60Hz | |||||
| Weight(kg) | 28 | 28 | 30 | 63 | 67 | 72 |

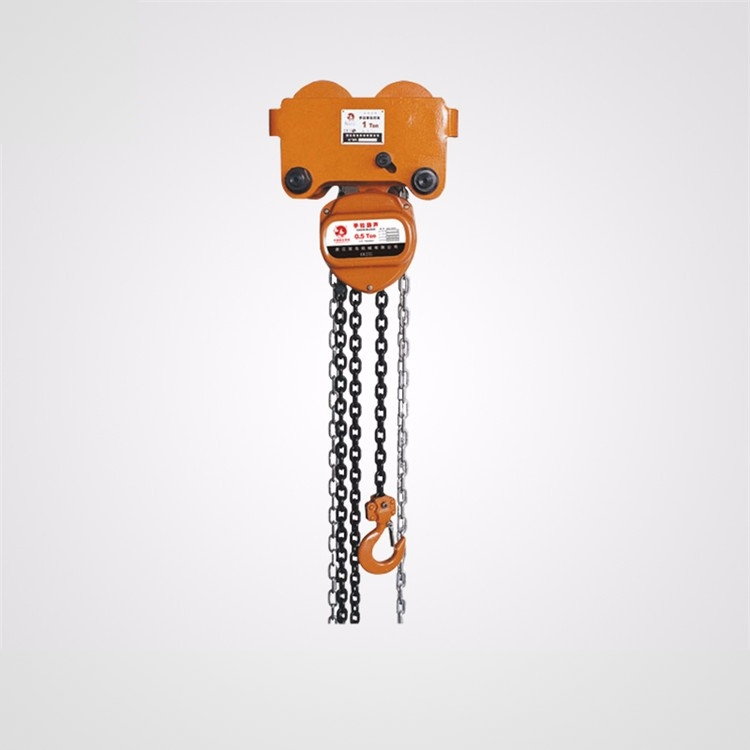

| MANUAL HOIST | |||||||
| Model | CH-500 | CH-1000 | CH-1500 | CH-2000 | CH-3000 | CH-20000 | |
| Capacity load(t) | 0.5 | 1 | 1.5 | 2 | 5 | 20 | |
| Standard lift(m) | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | |
| Test load(t) | 0.75 | 1.5 | 2.25 | 3 | 6.25 | 25 | |
Effort to rated caacity(N) | 160 | 320 | 360 | 400 | 320 | 390 | 400x2 |
No.of load chain | 1 | 1 | 1 | 1 | 2 | 2 | 8 |
Diameter of load chain (mm) | 6x18 | 6x18 | 8 | 8 | 6 | 10 | 10 |
Dimensions (mm) | 125/111 /32/24 /255 | 147/126 /38 /28/306 | 183/141 /42 /34/368 | 185/141 /45 /34/400 | 147/126 /45 /34/444 | 215/163 /65 /48/616 | 585/191 /110 /88/1000 |
Net weight (kg) | 8 | 10 | 16 | 17 | 14 | 36 | 154 |
Extra weight per meter of extra lift(kg) | 1.7 | 1.7 | 2.3 | 2.3 | 2.5 | 5.3 | 19.4 |
