Factory direct wholesale used aluminum truss for sale
Product Description

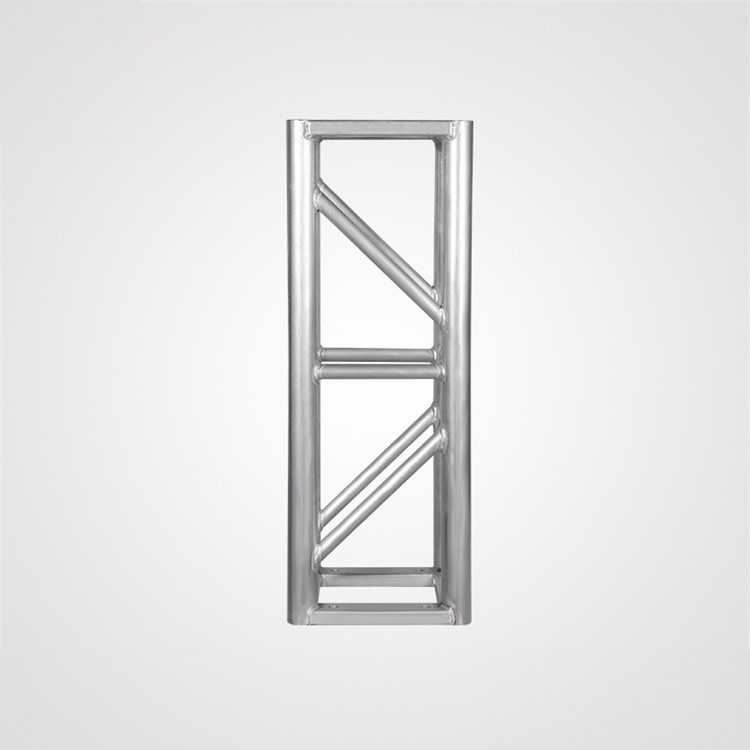

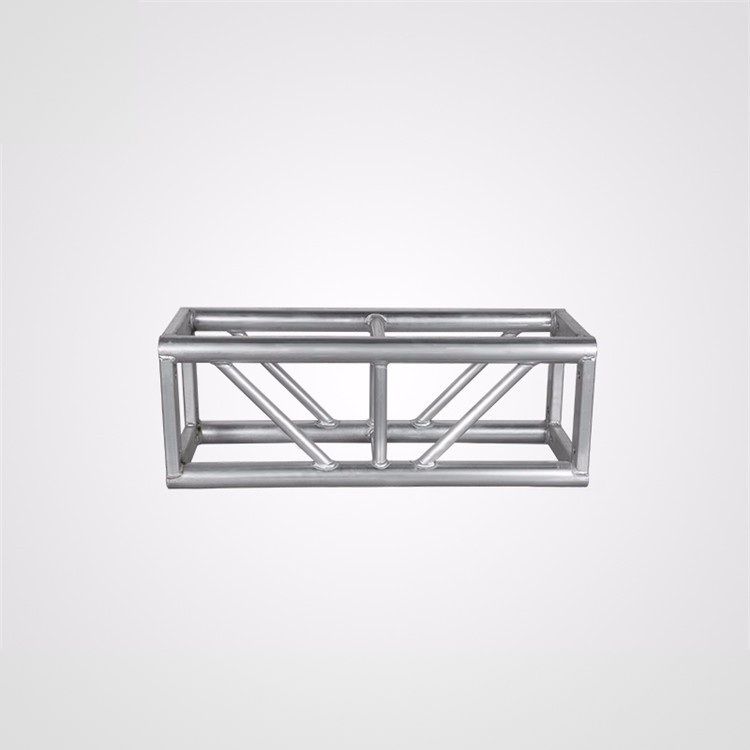

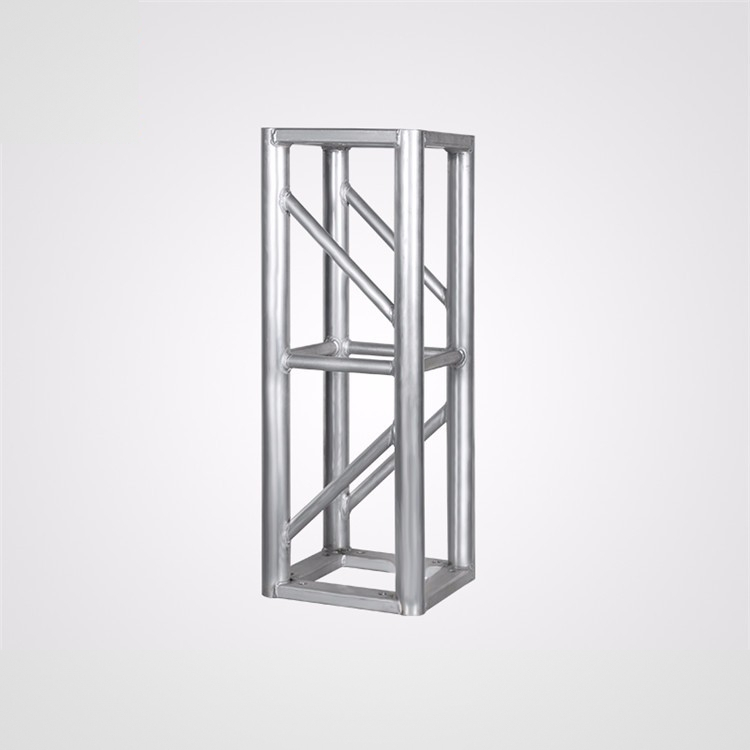

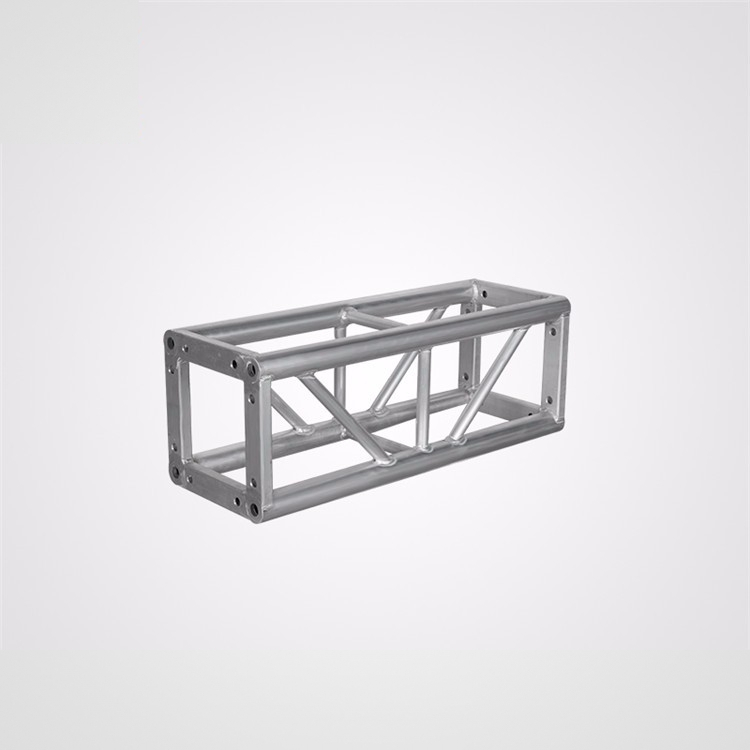

| Bolt Ladder Truss 300x300mm | |||
| Technical Specifications-TL300A1T3 | |||
| Material:6061 T6/6082 T6 | |||
| Main Tube:50*3mm | |||
| Vice Tube:25*2mm | |||
| Brace Tube:25*2mm | |||
| TL300A1T3-Allowable Loading | |||||||||
| Span | Uniformly Distributed Load | DEFLECTION | Centre Point Load(CPL) | DEFLECTION | |||||
| m | ft | kg/m | ibs/ft | mm | inch | kgs | ibs | mm | inch |
| 2 | 6.6 | 280 | 618.1 | 7 | 0.3 | 250 | 551.9 | 8 | 0.3 |
| 4 | 13.1 | 201 | 443.7 | 33 | 1.3 | 134 | 295.8 | 30 | 1.2 |
| 6 | 19.7 | 140 | 309.1 | 75 | 3.0 | 50 | 110.4 | 63 | 2.5 |
