High Quality Cheap 2m exhibition arch aluminium trussProduct Description

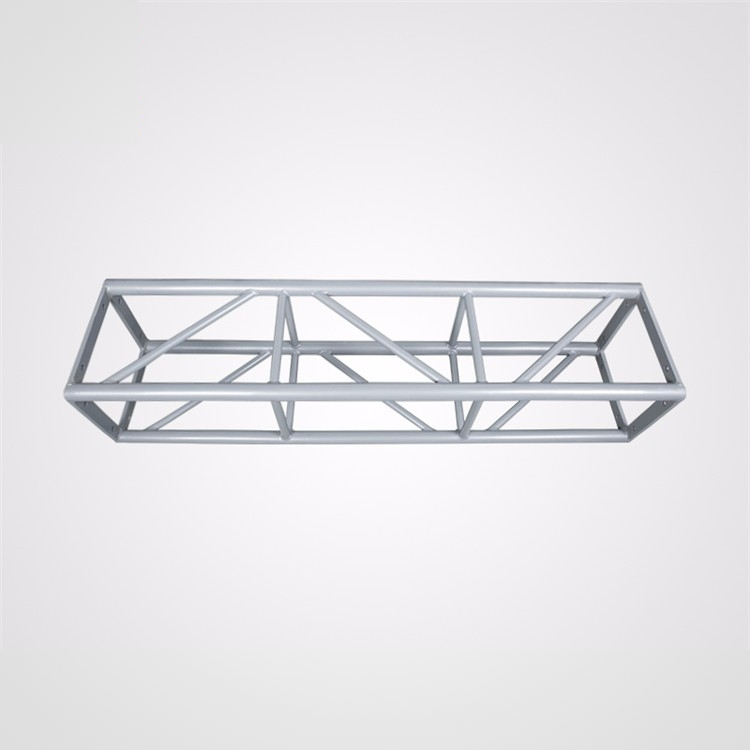

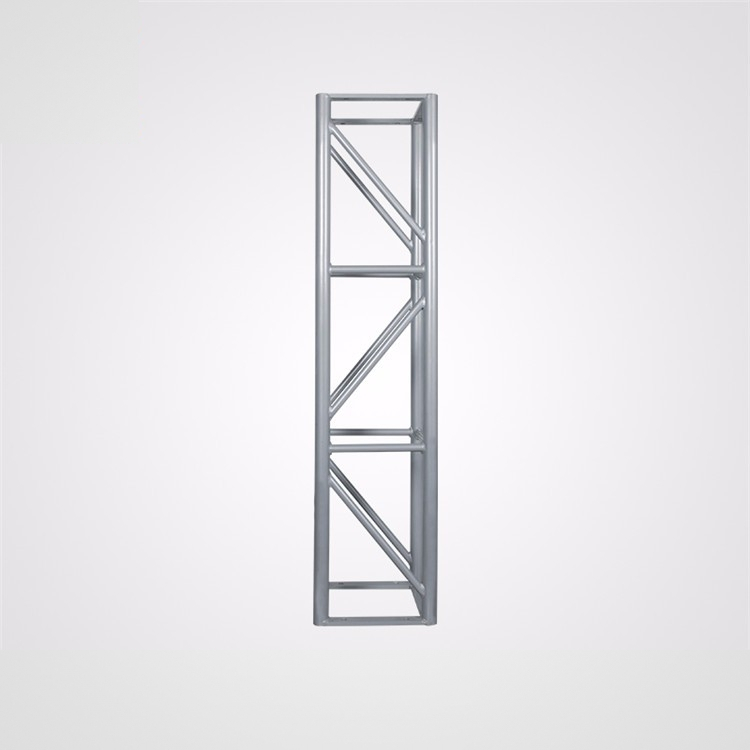

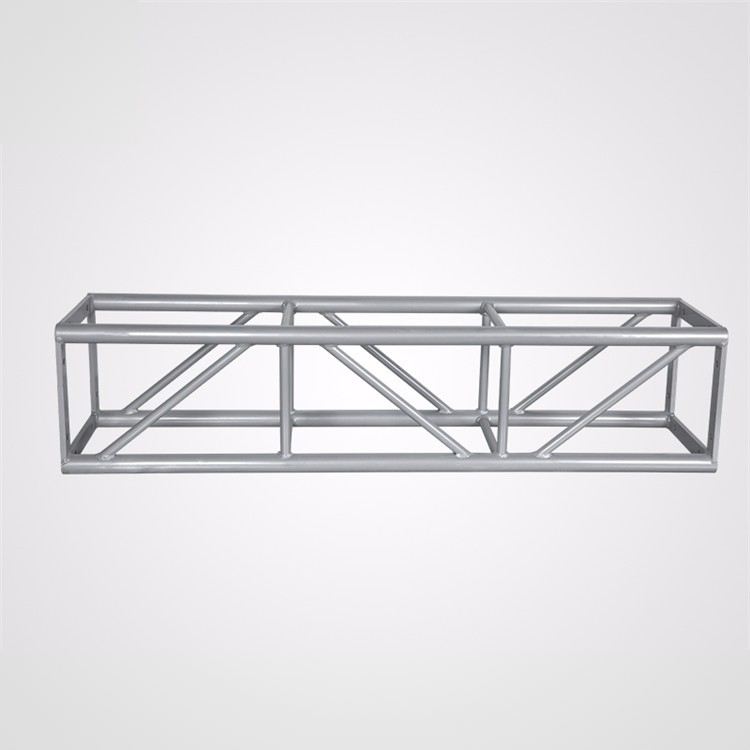

| Bolt Square Truss 400x400mm | |||
| Technical Specifications-TS4040A1T3 | |||
| Material:6061 T6/6082 T6 | |||
| Main Tube:50*2mm | |||
| Vice Tube:50*2mm | |||
| Brace Tube:30*2mm | |||
| TS4040A1T3-Allowable Loading | |||||||||
| Span | Uniformly Distributed Load | DEFLECTION | Centre Point Load(CPL) | DEFLECTION | |||||
| m | ft | kg/m | ibs/ft | mm | inch | kgs | ibs | mm | inch |
| 2 | 6.6 | 2000 | 4415.0 | 1 | 0.0 | 800 | 1766.0 | 1 | 0.0 |
| 4 | 13.1 | 1780 | 3929.4 | 7 | 0.3 | 730 | 1611.5 | 8 | 0.3 |
| 6 | 19.7 | 1540 | 3399.6 | 15 | 0.6 | 667 | 1472.4 | 12 | 0.5 |
| 8 | 26.2 | 1220 | 2693.2 | 23 | 0.9 | 598 | 1320.1 | 22 | 0.9 |
| 10 | 32.8 | 1050 | 2317.9 | 31 | 1.2 | 509 | 1123.6 | 33 | 1.3 |
| 12 | 39.4 | 833 | 1838.9 | 40 | 1.6 | 433 | 955.8 | 43 | 1.7 |
| 14 | 45.9 | 666 | 1470.2 | 50 | 2.0 | 364 | 803.5 | 59 | 2.3 |
| 16 | 52.5 | 500 | 1103.8 | 75 | 3.0 | 300 | 662.3 | 77 | 3.0 |
