Most Popular black Aluminum 6082 T6 dj trussProduct Description

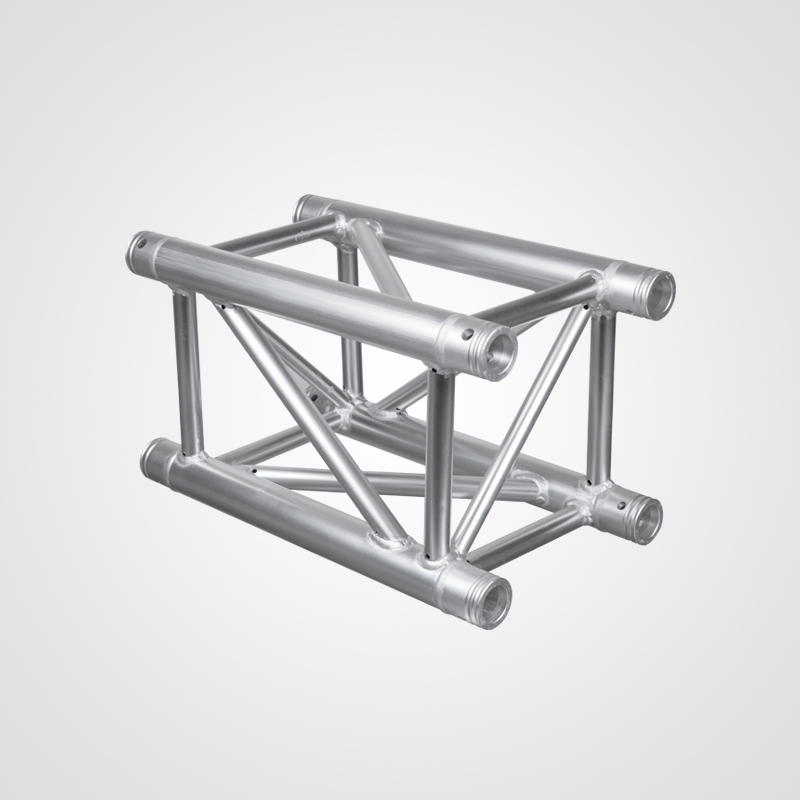

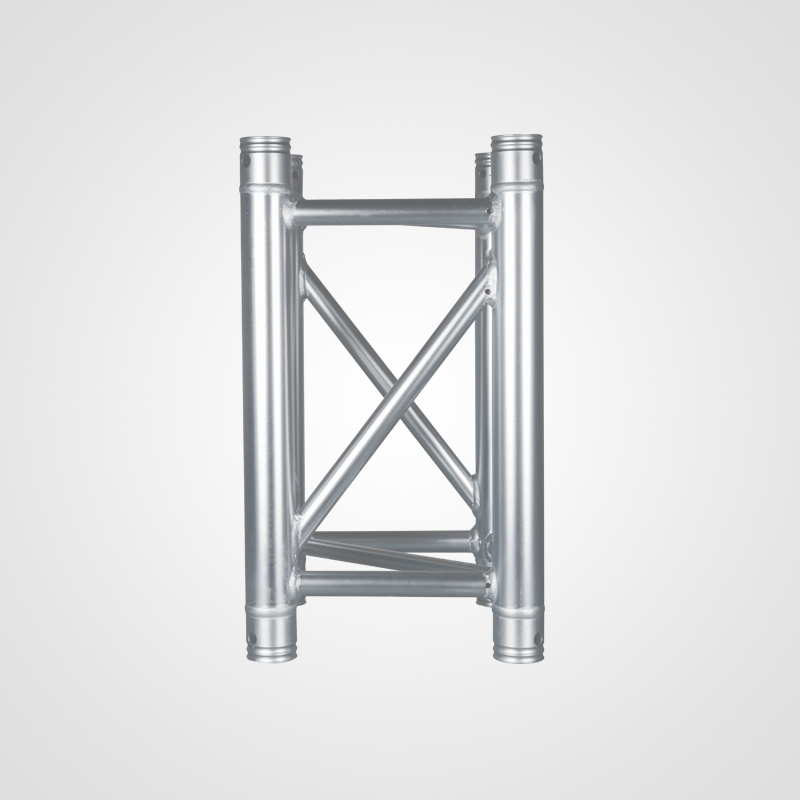

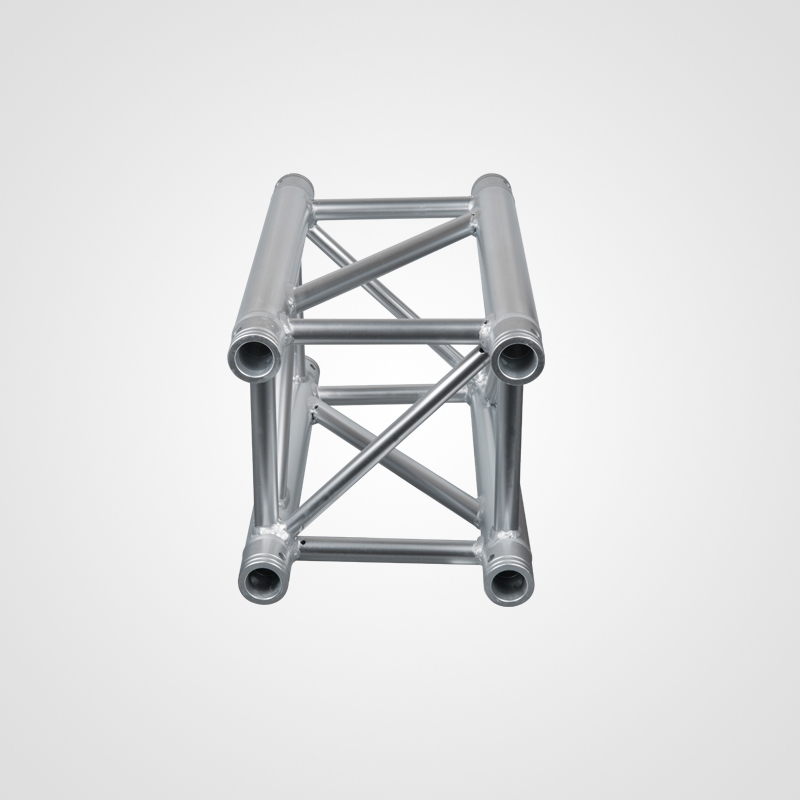

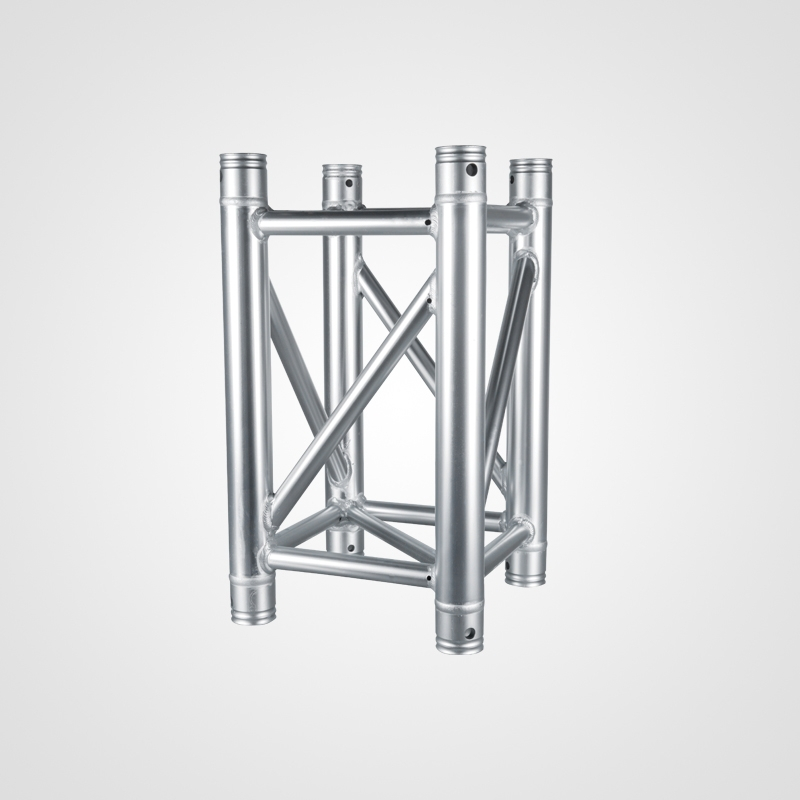

| Spigot Square Truss 290x290mm | |||
| Technical Specifications-TS290B1T3 | |||
| Material:6061 T6/6082 T6 | |||
| Main Tube:50*3mm | |||
| Vice Tube:25*2mm | |||
| Brace Tube:25*2mm | |||
| TS290B1T3-Allowable Loading | |||||||||
| Span | Uniformly Distributed Load | DEFLECTION | Centre Point Load(CPL) | DEFLECTION | |||||
| m | ft | kg/m | ibs/ft | mm | inch | kgs | ibs | mm | inch |
| 2 | 6.6 | 1600 | 3532.0 | 2 | 0.1 | 520 | 1147.9 | 1 | 0.0 |
| 4 | 13.1 | 1432 | 3161.1 | 9 | 0.4 | 429 | 947.0 | 6 | 0.2 |
| 6 | 19.7 | 1230 | 2715.2 | 20 | 0.8 | 392 | 865.3 | 17 | 0.7 |
| 8 | 26.2 | 978 | 2158.9 | 32 | 1.3 | 359 | 792.5 | 29 | 1.1 |
| 10 | 32.8 | 788 | 1739.5 | 45 | 1.8 | 333 | 735.1 | 43 | 1.7 |
| 12 | 39.4 | 500 | 1103.8 | 55 | 2.2 | 310 | 684.3 | 56 | 2.2 |

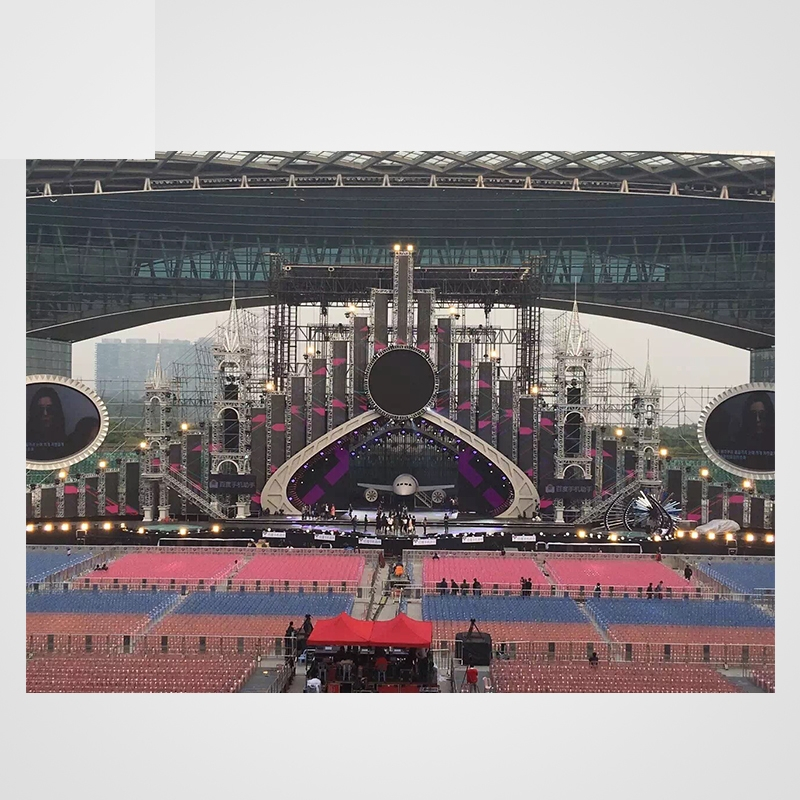

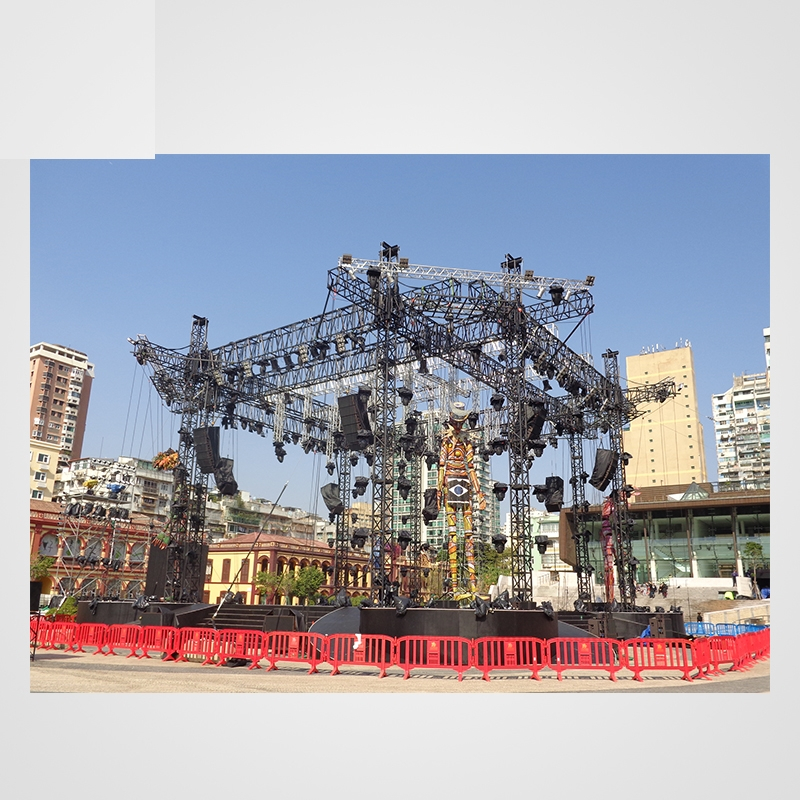

TS290B1T3 truss is constructed of main tubes(50*3mm)and brace tube(25*2mm). Thickness>=3mm,HRC>=15. They have been designed specificly for professional light and sound equipment,on exhibitions, for entertainment,theatre and discotheque environments. OMEGATRUSS supplies a variety of truss elements that provide maximum flexibility,including standard or custom-made lengths,circles and several types of corners.OMEGATRUSS can create custom-made pieces on request. |
